PARD TA32 LRF thermal imaging monocular Night vision device 52201325

AKAH

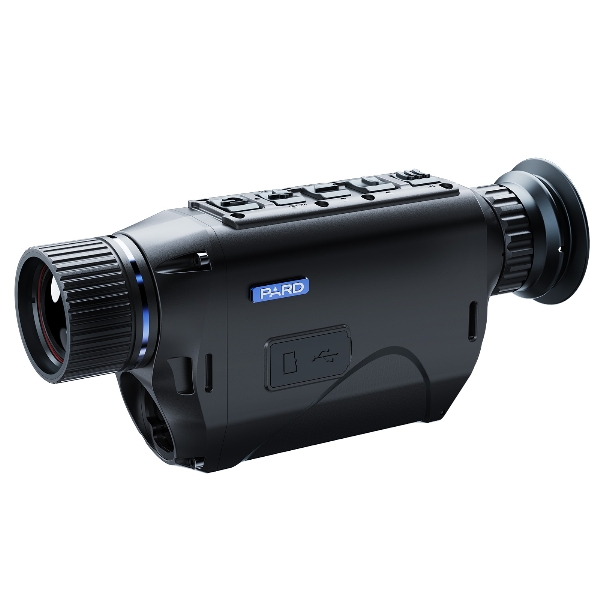

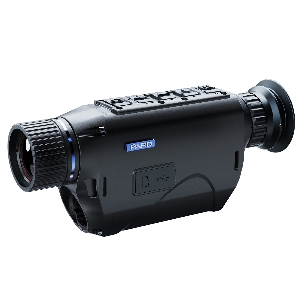

PARD TA32 LRF thermal imaging monocular

52201325

PARD TA32 LRF thermal imaging monocular from AKAH is a Night vision device with the manufacturer number 52201325.

• Dimensions: Objektiv 25 mm

The TA32 is a compact, lightweight and handy monocular that fits comfortably in the hand. The display delivers a clear and consistent image with fine detail thanks to AMOLED display, taking your thermal imaging hunting experience to a new level!

Key Features:

• small enough to fit in a jacket pocket
• sensitive sensors ? 35 mk
• lightweight construction
• 1000 m LRF

Technical data:

• Sensor type: uncooled VOx (vanadium oxide)
• Resolution(px): 384*288
• Pixel size (µm): 12*12
• NETD(mK): ?25mK?0.025??
• Frame frequency(Hz): 50
• Human detection distance(m): 1100
• Vehicle detection distance(m): 2200
• Lens (mm): 25
• Optical magnification(x): 2x
• Digital zoom(x): 2x-4x-6x-8x
• PIP zoom(x): 2X
• Continuous digital zoom: 2.6-41.6X
• Field of view (HxV): 10.5° x 7.9°
• Diopter adjustment (D): - 5D~+5D
• Display type: OLED
• Resolution(px): 1024*768
• Scene mode: city, rain, forest
• Image mode: WT-Hot, BK-Hot, RD-Hot, Fusion1, Fusion2, IronRed1, IronRed2
• Photo resolution (px): -
• Photo format: .JPG
• Video resolution(px): 1024*768
• Video format: .mp4
• Memory(GB): TF Card(128 GB)(Max)
• Image Engine: Pard IREA
• LRF Capture Range(m): 1000
• PIP: Yes
• Loop Recording: Yes
• Red Dot: Yes
• Trigger: Mechanical Trigger
• Microphone: Yes
• Firmware upgrade: Yes
• USB Tpye-C: Yes
• HDMI output: Yes
• WiFi: Yes
• Supported apps: PardVision
• Battery type: 18650*1 lithium-ion battery
• Output voltage (V): 3.7V
• Operating time(h): ?5h
• External power supply(V): Type-C
• Degree of protection: IP67
• Operating temperature(°C): -20~50
• Body: aluminum alloy + composite material
• Objective lens: multi-coated all-glass lens
• Product dimensions (L x W x H, mm): 166 x 72 x 49
• Weight (g): 321
